ARC 500 Series
Commercial-Grade Performance With Minimal Sightlines
Fixed Aluminum Window
A commercial-grade fixed aluminum window engineered for architectural, multi-unit, and developer projects. With triple glass laminated sealed units, 2" multi-cavity thermal breaks, and an ultra-low 2 1/8" profile, the ARC 500 delivers strong performance with minimal sightlines.
Frame width
3 5/8", 5 5/8"
Sealed units
1" – 1 3/4" triple glass laminated
Colours
Black, Anodized, White
Window Details
Opening type
Fixed
Frame width
3 5/8", 5 5/8"
Sealed units
1" – 1 3/4" triple glass laminated
Exterior colour
Black, Anodized
Interior colour
Black, Anodized, White
Specifications
- 3 5/8" or 5 5/8" frame
- 2" multi-cavity thermal breaks
- High thermal performance
- Concealed and capless drainage
- AAMA 2604 powder coating with 20-year warranty
- 45° assembly
- Under-glass sound and thermal seal around the entire perimeter
- Concealed provisions for installation screws
- Specifically designed sealing system integrated into the glazing bead
- Non-apparent gaskets
- Modular or structural assembly possible
- 2 1/8" assembly height (low profile)

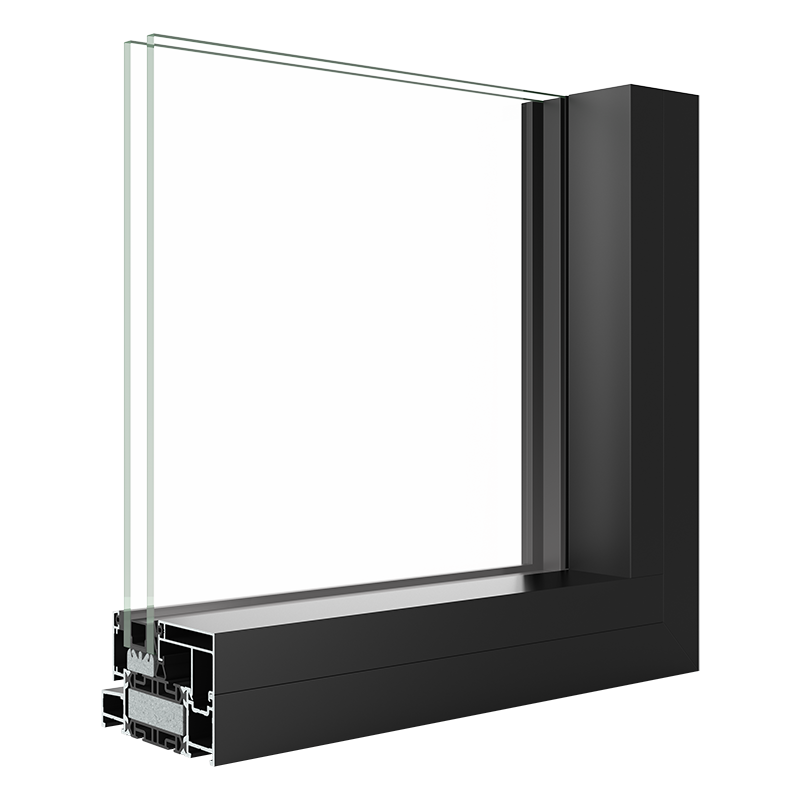

ARC 500 Aluminum Windows
